WATER METER MODEL BETA-MJ-SDC
Click on image to enlarge

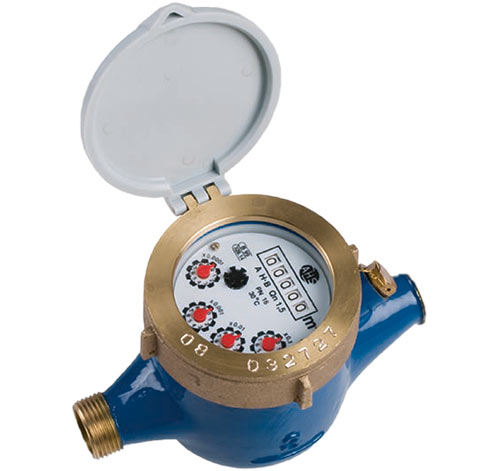

Multi-jet type water meter Superdry register
An inferential multi-jet type meter for cold water with a straight
reading register.
Superdry version with complete register mechanism mounted in a dry compartment.
The impeller rotates in a measuring chamber (distributor) with a double raw of tangential holes.
The chamber is made of self cleaning synthetic resin.
A version for warm water up to 90° C is available.
A version suitable for telemetering complete with a pulse output is also available.
The Beta-Mj-Sdc water meter offers the following advantages:
- The straight reading register operates in a dry compartment, which is under vacuum condition, as a result the register always remains perfectly clear.
Easy reading in any working conditions is ensured. - The meter is suitable for operation in hard water and under conditions where deposits may occur, and also if there is sand in suspension.
- A long operating life thanks to the robust construction, which provides maximum protection, to the very low number of impeller revolutions per cubic meter of water flow and to the selection of the best quality materials.
- A suitable shield protects the magnetic drive against any interferences from external fields.
- Excellent hydraulic performance, EEC approval 75/33 class B.
- The meter can be installed on horizontal, vertical and inclined pipes.
TECHNICAL DATA AND DIMENSIONS (Class B)
GAUGE |
mm |
15 |
20 |
25 |
30 |
40 |
50* |
Qmax |
m³/h |
3 |
5 |
7 |
12 |
20 |
30 |
Qn |
m³/h |
1.5 |
2.5 |
3.5 |
6 |
10 |
15 |
Qt |
l/h |
120 |
200 |
280 |
480 |
800 |
3000 |
Qmin |
l/h |
30 |
50 |
70 |
120 |
200 |
450 |
PN |
bar |
16 |
16 |
16 |
16 |
16 |
16 |
Pressure loss |
bar |
< 1 |
< 1 |
< 1 |
< 1 |
< 1 |
< 1 |
Sensitivity |
l/h |
< 10 |
< 15 |
< 20 |
< 20 |
< 40 |
< 40 |
Minimum reading |
lt |
0.05 |
0.05 |
0.05 |
0.05 |
0.5 |
0.5 |
Maximum reading |
m³ |
99.999 |
99.999 |
99.999 |
99.999 |
999.999 |
999.999 |
Weight (with connections) |
Kg |
1.4 |
1.7 |
2.6 |
3.10 |
5.20 |
8.50 |
L (Length) |
mm |
110-145-165-170 |
190 |
160-260 |
160-260 |
200-300 |
300 |
W (Width) |
mm |
99 |
99 |
104 |
104 |
125 |
125 |
H (Height) |
mm |
107 |
109 |
115 |
120 |
148 |
173 |
*Body 2'' cast iron - Available also in flanged version
