WATER METER MODEL BETA-MJ-LFC
Click on image to enlarge

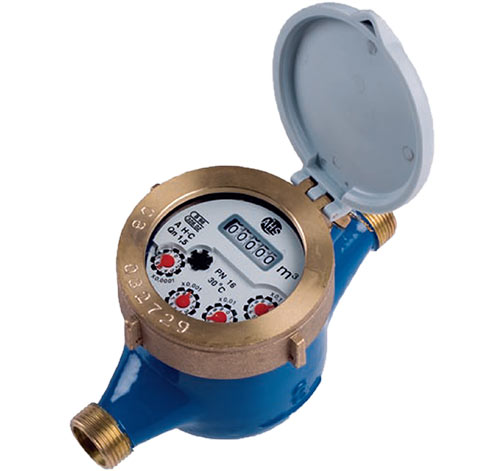

Multi-jet type water meter with liquid filled register
An inferential, multi-jet, water meter for cold water. The meter has a straight reading register which is located in a liquid filled counter.
The impeller rotates in a measuring chamber (distributor) with a double raw of tangential holes.
The chamber is made of self cleaning synthetic resin.
The Beta-Mj-Lfc water meter offers the following advantages:
- The straight reading register is contained in a liquid filled sealed housing which is not subject to discolouration by scale, dirt or any deposit. A special device prevents air bubbles distorting the reading over the counter numerals. Easy reading in any working conditions is ensured.
- The meter is suitable for operation in hard water and under conditions where deposits may occur.
- A long operating life thanks to the robust construction, which provides maximum protection, to a very low number of impeller revolutions per cubic metre of water flow and to the selection of high quality materials.
- Mechanical transmission movement assures absolute reliability.
- Excellent hydraulic performance, EEC approval 75/33 (Class B and C).
- The meter can be installed on horizontal, vertical and inclined pipes.
TECHNICAL DATA AND DIMENSIONS (Classe B and C)
GAUGE |
mm |
15 |
20 |
25 |
32 |
40 |
50** |
Qmax |
m³/h |
3 |
5 |
7 |
12 |
20 |
30 |
Qn |
m³/h |
1.5 |
2.5 |
3.5 |
6 |
10 |
15 |
Qt (Classe B/C) |
l/h |
120/22.5 |
200/37.5 |
280/52.5 |
480/90 |
800/150 |
3000/225 |
Qmin (Classe B/C) |
l/h |
30/15 |
50/25 |
70/35 |
120/60 |
200/100 |
450/90 |
PN |
bar |
16 |
16 |
16 |
16 |
16 |
16 |
Pressure loss |
bar |
< 1 |
< 1 |
< 1 |
< 1 |
< 1 |
< 1 |
Sensitivity |
l/h |
< 10 |
< 15 |
< 20 |
< 20 |
< 40 |
< 40 |
Minimum reading |
lt |
0.05 |
0.05 |
0.05 |
0.05 |
0.5 |
0.5 |
Maximum reading |
m³ |
99.999 |
99.999 |
99.999 |
99.999 |
999.999 |
999.999 |
Weight (with connections) |
Kg |
1.5 |
1.75 |
2.6 |
2.90 |
5.50 |
8.90 |
L (Length) |
mm |
110-145-165-170 |
190 |
160-260 |
160-260 |
200-300 |
300 |
W (Width) |
mm |
99 |
99 |
104 |
104 |
125 |
125 |
H (Height) |
mm |
107 |
109 |
115 |
120 |
148 |
173 |
**Body 2'' cast iron - Available also in flanged version
